Project Description

LENGTH (internal) 12’
WIDTH (internal) 5’5
HEIGHT (internal) 7’5
WEIGHT (unloaded) 1150kg
RATED (loaded) 2500kg
Bay Length 6’8”
Bay Width 2’4”
Recommended Maximum
Horse Size 17.3hh

Standard – Inside
• Saddle Pole x 2
• Front Tack Box with external access comes
with 3x bridle hooks per access door
• 2x pop-up roof vents
• Padded Centre Divider/s
• Side Walls with Rubber & Padding
• Adjustable Height Chest Bars, Curved,
Removable & Padded
• Deep Auto Latched Breaching Gates,
Padded, and able to be held in open position
• Internal LED strip lighting
• SuperGrip Sealed Rubber on the Floor
& Tailgate
• Australian Galvanised Steel for almost
all steelwork
• Australian Kilndried Hardwood
• Floorboards for all horse area

Standard – Outside
• White Automotive Paint & Automotive
Sealant for washing inside / out, graphics
front, sides & tailgate
• Tinted Curved Front Window
• 1x RHS Tinted Sliding Side Window with flyscreen
• 1x LHS Tinted Sliding Side Window with flyscreen
• 1x LHS Flush Mount Side Tie
• 1x RHS Flush Mount Side Tie
• Aluminium Package – covered A-frame,
corner stays, guards, rear steps, extended
height around front
• 1x LHS Tackbox Door with Lockable Flush
Handle, Gas Strut & Saddle Pole Bracket
• 1x RHS Tackbox Door with Lockable Flush
Handle, Gas Strut & Saddle Pole Bracket
• 1x LHS Personal Access Door with Lockable
Flush Mount Door Handle & gas strut
• 1x RHS Personal Access Door with Lockable
Flush Mount Door Handle & gas strut
• 1x LH Side Step / 1x RH Side Step
• Heavy Duty Swing-Away Jockey Wheel
• Spare Wheel mounted on front

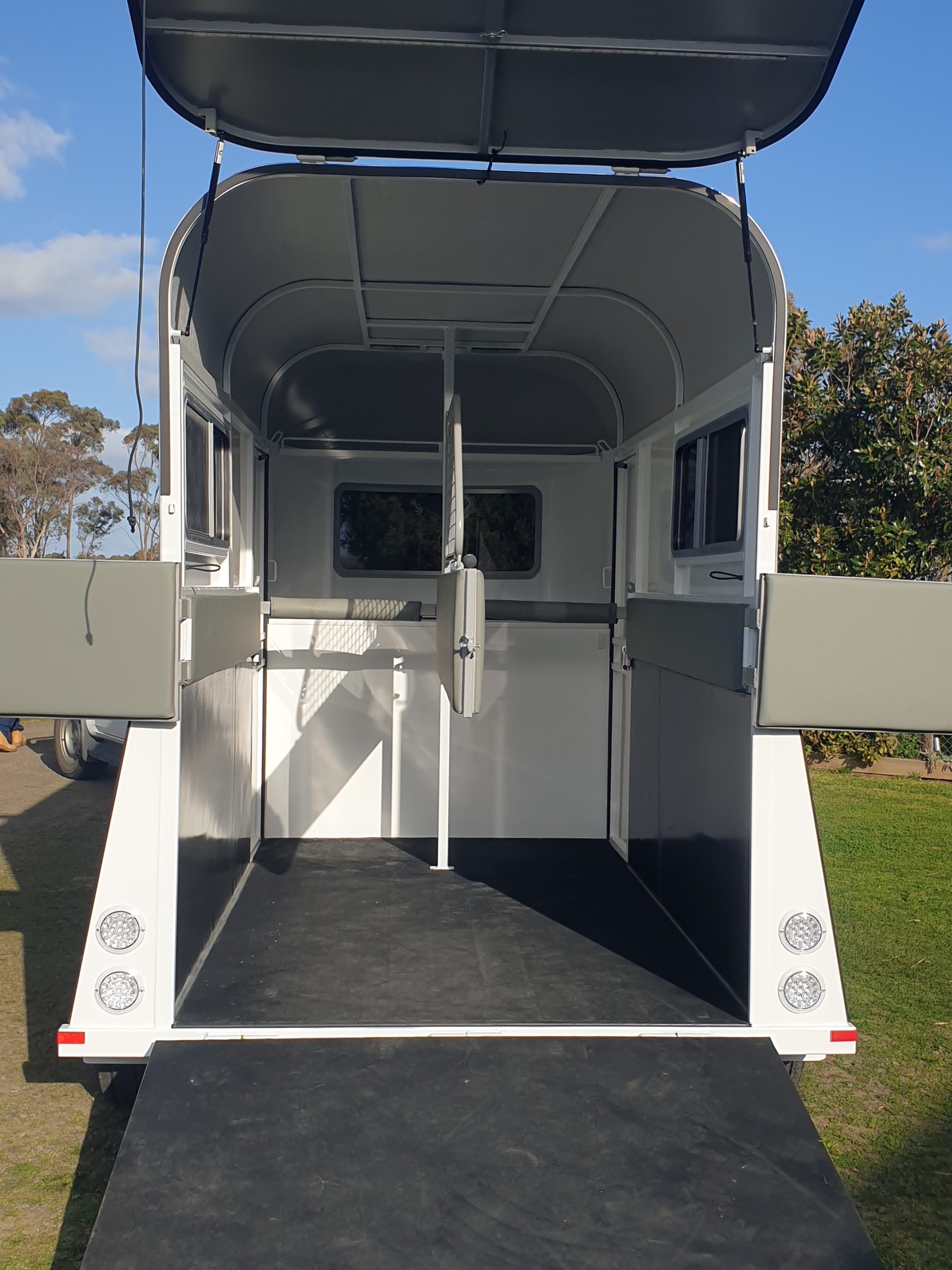

Standard – Outside (Rear)
• 4’7” Extended Height Tailgate, comes with
Easylift Gas Strut Operation, 2x handles &
adjustable latches
• Lift-up Rear door above the tailgate, with
Easylift Gas Strut Operation
• TempFlow Bracket on Lift-up Rear Door for
travelling with the Lift-up door ajar
• LED Load Lighting on Lift-up rear door
• LED Trailer Lights (Brakes, Indicators, Parkers)

Standard – Outside
(Underneath)
• Rocker Roller Suspension for smooth ride
• Sunraysia Wheels with light truck tyres
• Breakaway System

Popular Options to add:
• Head divider
• Breaching gate slide bolt
• Rear lift up door tail lights
• Graphics Upgrade
